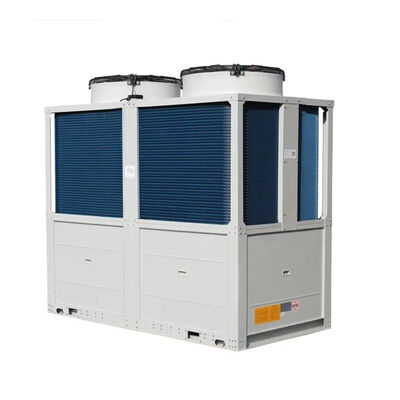

This ultra high temperature heat pump can provide 90℃ hot water, replacing traditional electric heaters or boilers, thus reducing electricity costs. It is widely used in food processing, industrial heating, waste heat recovery, and other fields, providing users with efficient, energy-saving, safe, and economical system solutions.
According to project requirements, this heat pump can utilize on-site low-grade heat sources, such as waste hot water or waste hot gas, to generate high-temperature energy, meeting the needs for high-temperature hot air, hot water, or steam.
Features:
1. High output temperature, up to 90 °C
2. High energy efficiency, low operating costs
3. Wide range of applications, suitable for various environments
4. Powerful corrosion protection
5. Wide operating environment range
Advantages:
1. Energy saving and cost reduction
By recovering and utilizing waste heat, the final energy consumption can be reduced by up to 4 times, achieving significant energy savings.
2. Reduced carbon dioxide emissions
Replacing fossil fuel boilers with heat pumps can reduce your emissions by 10 times.
3. Enhanced autonomy
Achieve energy independence through local power generation and waste heat recovery.
Applications:
1. Mechanical Industry
Ultra-high temperature heat pump units can provide 90℃ hot water for automobile factory production lines, replacing electric heaters and saving energy.
2. Laundry Industry
High-temperature hot water can provide an energy efficiency ratio of up to 2.0 for the laundry industry, ensuring year-round hot water supply.
3. Food and Beverage Processing Industry
The temperature for processing food and beverages must undergo high-temperature sterilization. High-temperature heat pumps can provide ultra-high temperature hot water to kill a large number of bacteria.
4. Chemical Industry
Widely used in numerous chemical industries, such as the pharmaceutical industry, providing high-temperature hot water to meet the needs of pharmaceutical production lines, replacing boilers; also suitable for small and medium-sized offices, workshops, restaurants, villas, and other places.
Technical Info
| type | FKH-10I/CGW |
| Side air outlet | |
| Power specifications | 220V～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW |
| Heating consumption power under A1 working condition |
4.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW |
| Heating consumption power under A2 working condition |
5kW |
| Heating capacity under A3 working condition(-12) |
9.5kW |
| Heating consumption power under A3 working condition |
6.2kW |
| Heating capacity under A4working condition(-20) |
8kW |
| Heating consumption power under A4 working condition |
5.6kW |
| Maximum operating current | 40A |
| discharge | 1.7m³/h |
| noise | ≤56dB(A) |
| Water side pressure loss | ≤72kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 |
| CONNECT SIZE | DN32(hexagon nipples)) |
| Unit weight(kg) | 160 |
Get more help
If you are interested in our high-temperature heat pumps, please contact us. Our heat pump experts will give you the best advice.
|
|
